Trimlux Pro 23 is a flexible edging seal that is used on Shower trays, baths and worktops Trimlux conceals and shields the silicone sealant inside the trim so no sealant slime, splitting or eyesores with Trimlux.
Trimlux is a two part shower seal that combines a Trimlux trim with an approved silicone. Each trim has an inner leg that is ribbed to provide a firm grip for the silicone sealant . Please refer to the technical drawing above. To install Trimlux the trim is turned upside down and the trim cavity (a) is slightly overfilled with silicone sealant. The trim is then installed over the joint as shown below.
The Sealux-N silicone 'anchors' the inner leg (a) firmly to the ledge. This inner leg (a) acts as a bond breaker that prevents the silicone making contact with the underside of the flexible outer leg (b).
In the event of joint movement between the ledge and wall the silicone keeps the inner leg (a) anchored to the ledge while the flexible outer leg (b) is free to flex to accommodate joint movement. This 'bond-breaker' inner leg creates some flexibility in the strip, the 'shielding' effect of the strip over the silicone promotes durability, hygiene and aesthetics. Trimlux Pro 23 is fixed to the wall with tile adhesive.
|Dimensions||1.850m x 0.023m / 1850mm x 23mm|

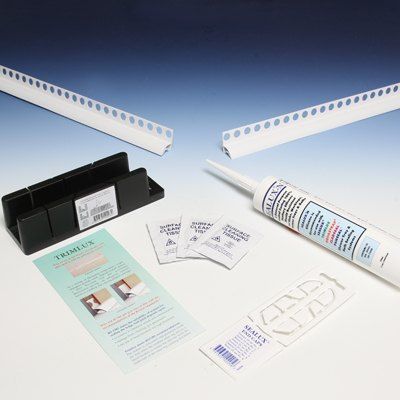

|Box Contents||2 x trims, each trim measures 1850mmx 23mm,
1 x tube of Sealux-N Silicone,
1 x Mitre Box,
2 x End caps,
1 x Spatula,
3 x Alcohol Wipes
Saw Trimlux installed on a rental property and landlord highly reccommeded it,
Decided I wanted a trimlux for our new ensuite, very pleased with it, no visible silicone anywhere :-)
