As popularity in cladding bathrooms continues to grow we have an intelligent sealing solution called Cladseal. Cladseal Seals are used to seal the joint between a PVC shower wall panel and a shower tray, pan, bath or floor. It allows for movement between wall and ledge and has become a very popular choice by leading PVC wall manufacturers.
Click on the tabs below for more information.
Cladseal shower or bath seals are designed for sealing lightweight PVC wall panels to shower trays and baths. Cladseal Seals are endorsed by Europe’s leading pvc wall panel manufacturers.
The Cladseal Sealant System combines a 18 mm wide strip profile with a neutral curing silicone called Sealux-N. Cladseal 18 is designed to span a gap of 10mm between the wall and adjacent ledge.
Sealux-N silicone acts as a flexible sealing material between Cladseal 18 and the adjacent ledge. The Cladseal Sealing Kit is the perfect seal for use around your bath or shower tray and is durable, flexible, hygenic and attractive.
Please see the technical drawing from our image gallery above. Excluding the uppermost surface (x), the inner cavity walls of Cladseal 18 are partially layered with a polythene tape indicated by the green line. Sealux-N silicone will not bond to this polythene tape. When joint movement occurs between the wall and ledge, the Sealux-N silicone bonded to Cladseal at (x) and to the ledge at (y) comes under tension.To reduce this build up of tension the silicone must stretch, but to stretch it must first release off the inner cavity walls of Cladseal 18 so a silicone bond breaker is required (according to BS 5385). The polythene tape is our silicone bond breaker and this allows the silicone to release off the inner cavity walls of Cladseal 18 and stretch to reduce the build up of tension. Elasticity is created through the flexible "bridge" of silicone connecting (x) to (y). This "bridge" of silicone sealant elongates to maintain stress free bonds with Cladseal at (x) and the ledge at (y). The silicone runs continuously through the corner joints, it remains visually concealed and environmentally protected inside the Cladseal 18 strip.

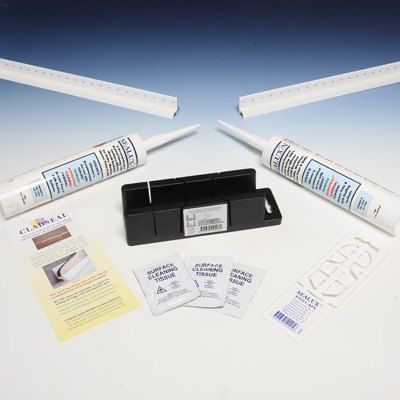

|Dimensions||1.850m x 0.018m / 1850mm x 18mm|
|Box Contents||2 x trims, each trim measures 1850mmx 18mm,
2 x tubes of Sealux-N Silicone,
1 x Mitre Box,
2 x End caps,
1 x Spatula,
3 x Alcohol Wipes
